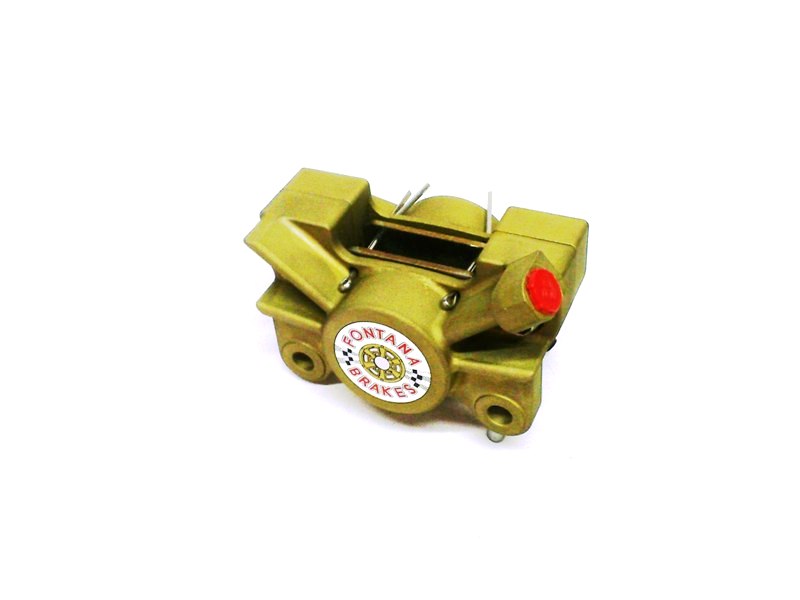

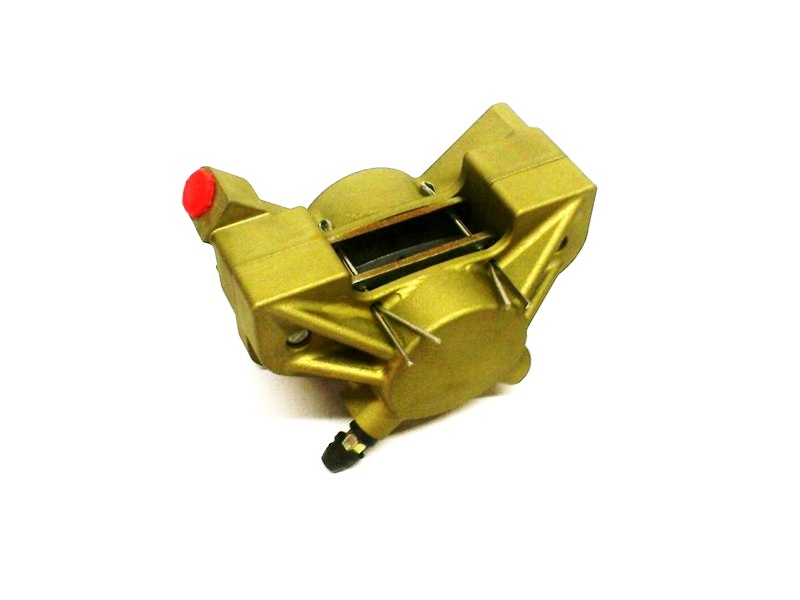

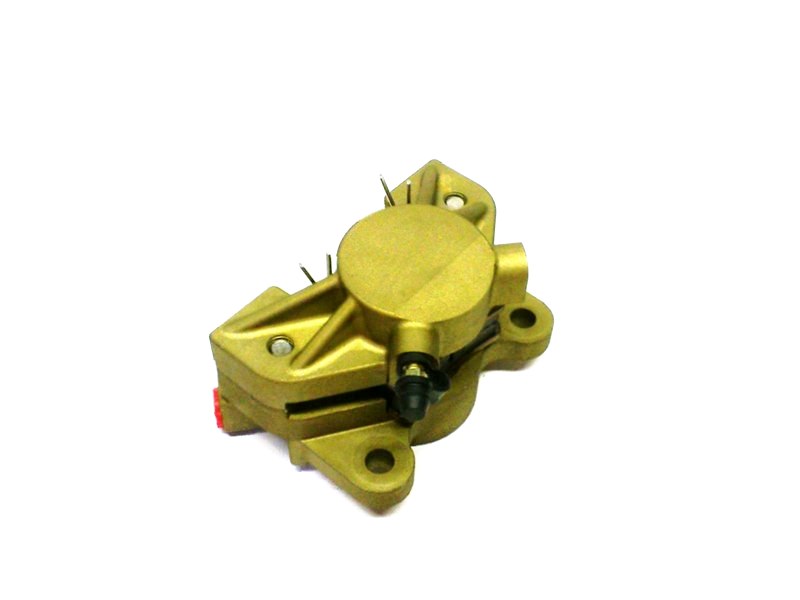

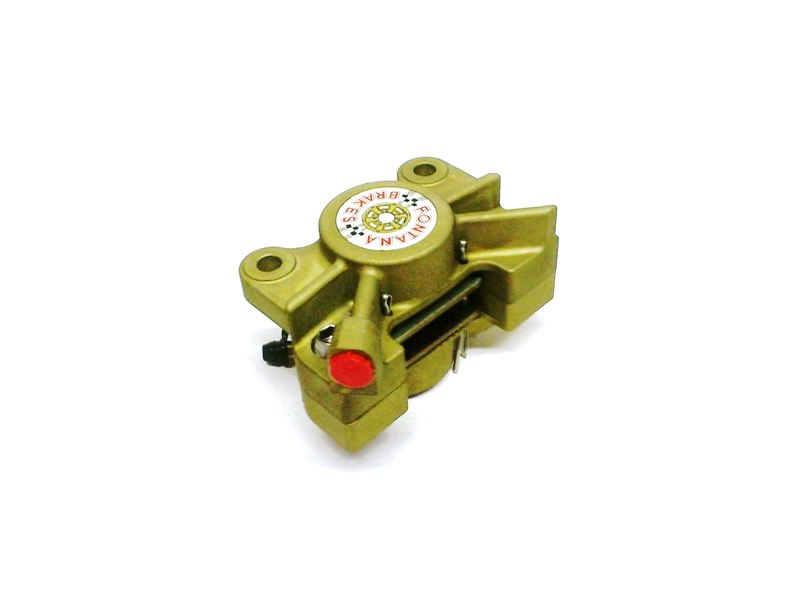

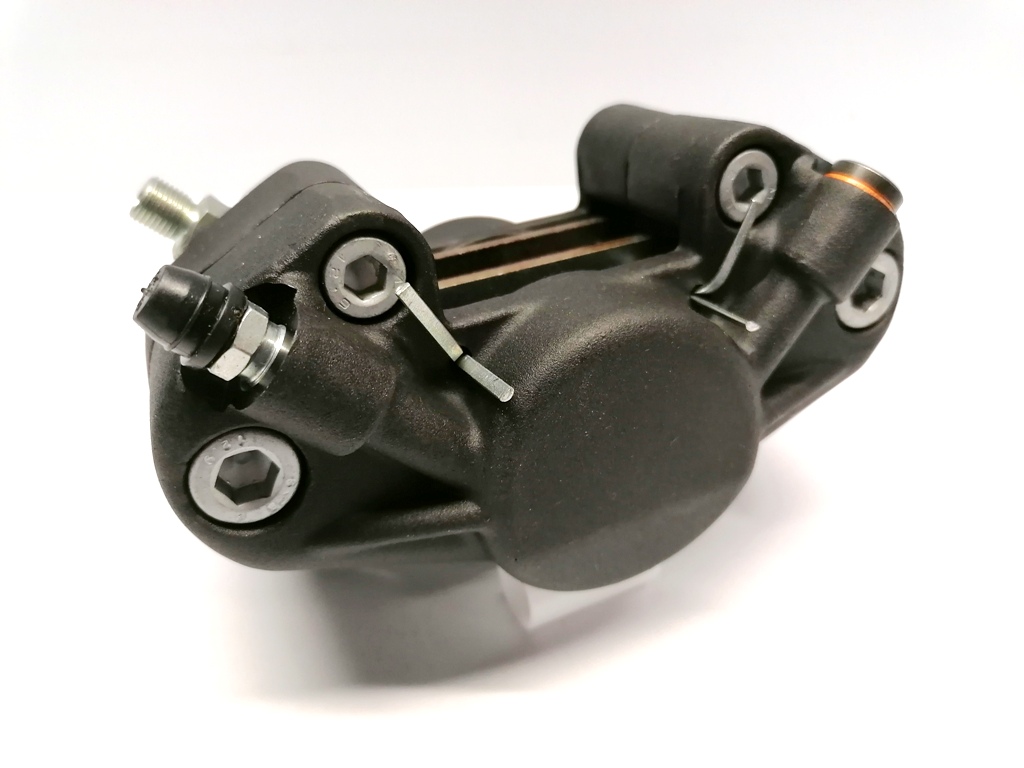

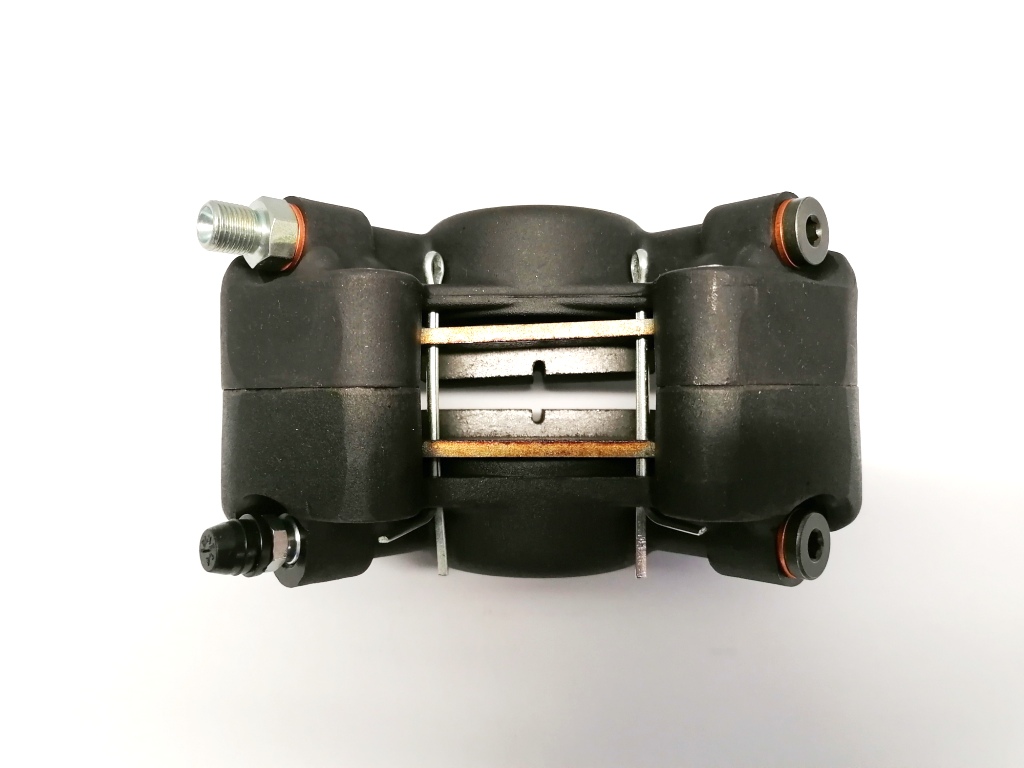

Brake Calipers



Piston Dia.	41.28mm x 2
Disc Dia. Max	280 mm
Disc Thickness	6.00 mm
Hydraulic Threads	M10x1
Offset	190 mm
Weight	770g

Right

Left

art.FB01 B

art.FB02 B

Euro 420,00

Euro 420,00

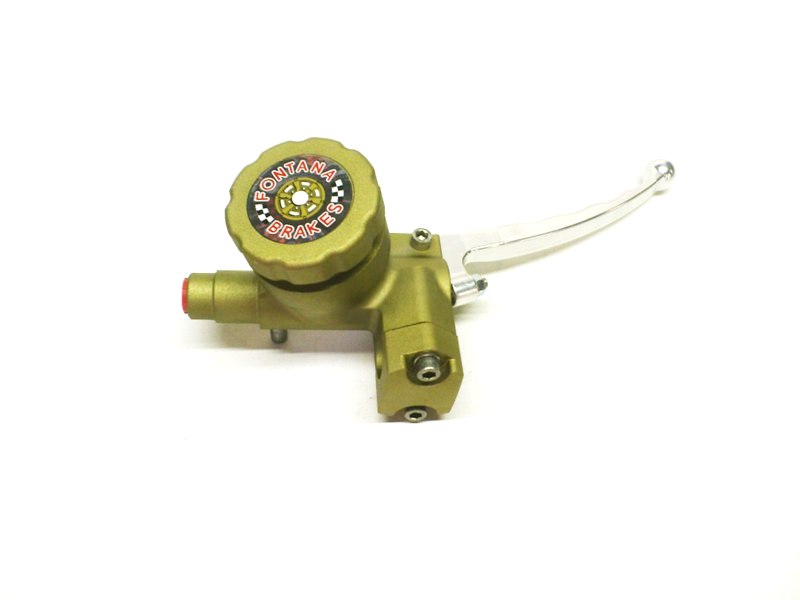

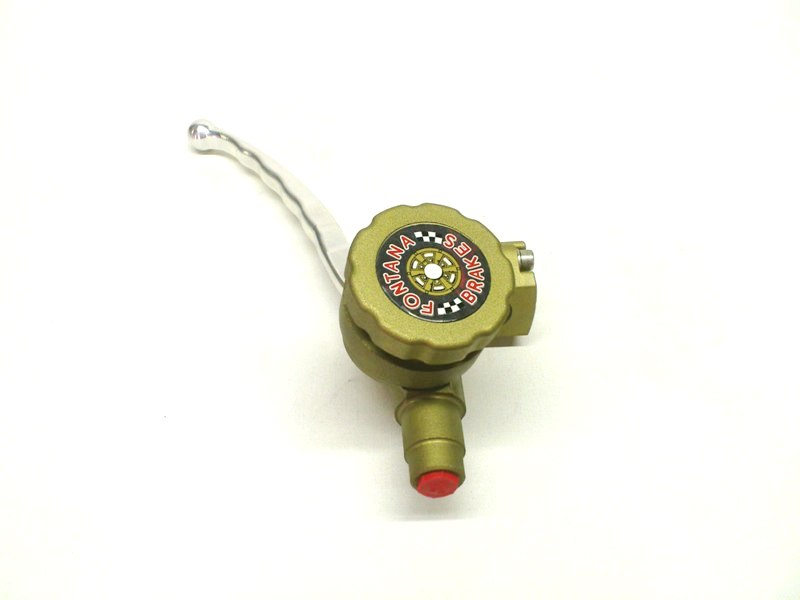

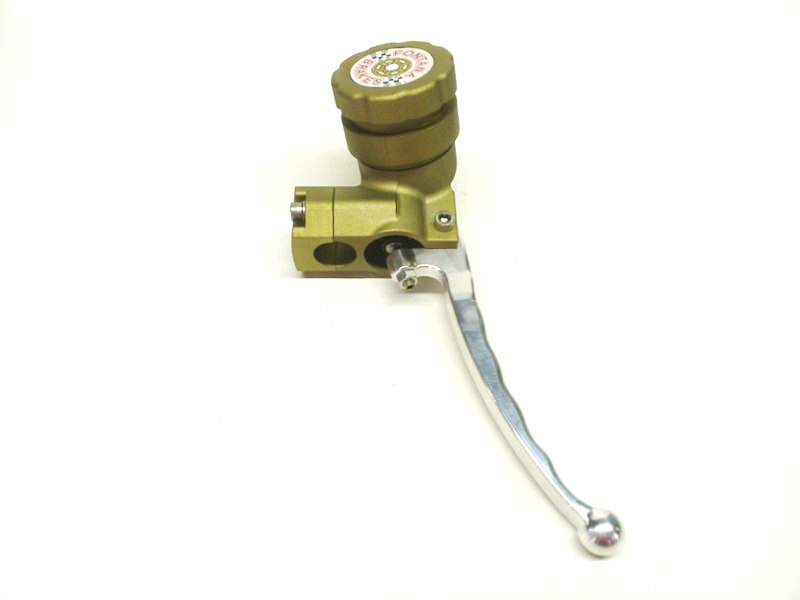

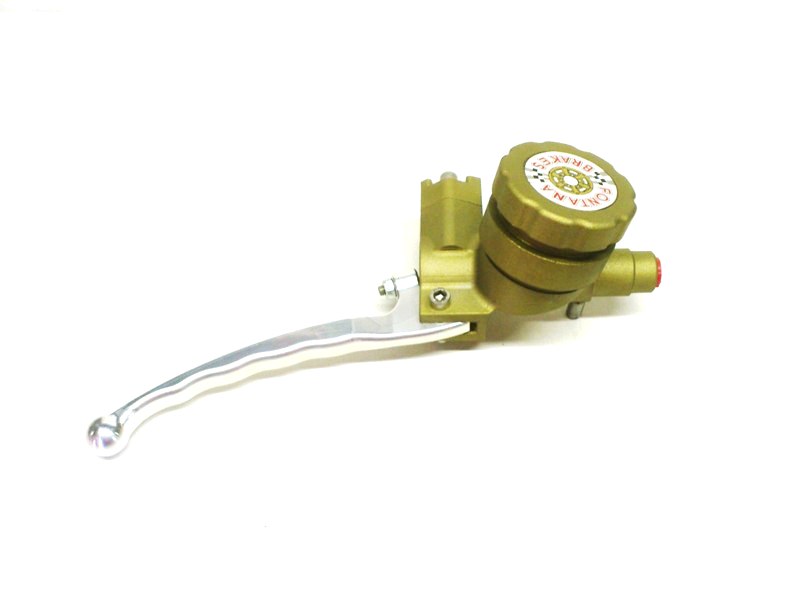

Front Brake Master Cylinder



Diameter	15,87 mm (0.675'')
Stroke	13 mm
Handlebar Dia	22 mm
Hydraulic Thread	M10x1
Weight	375 gr

art.FB11 B

Euro 440,00

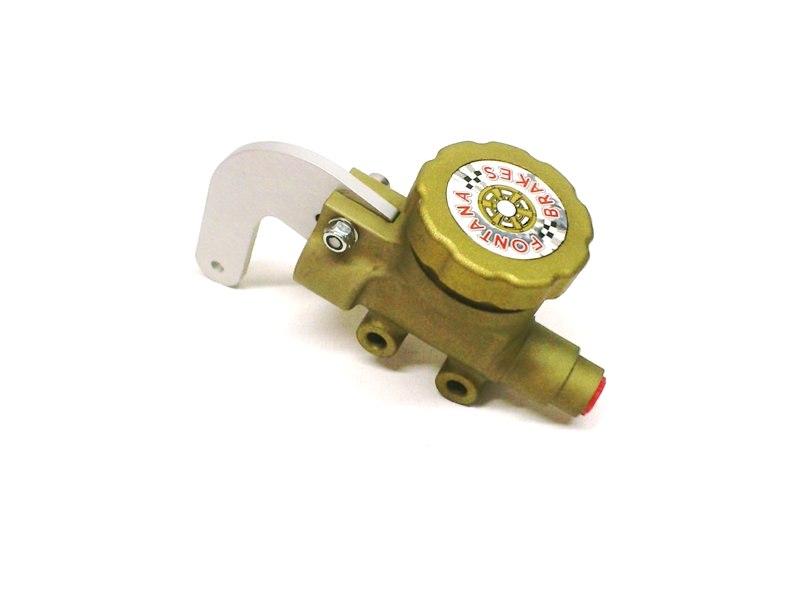

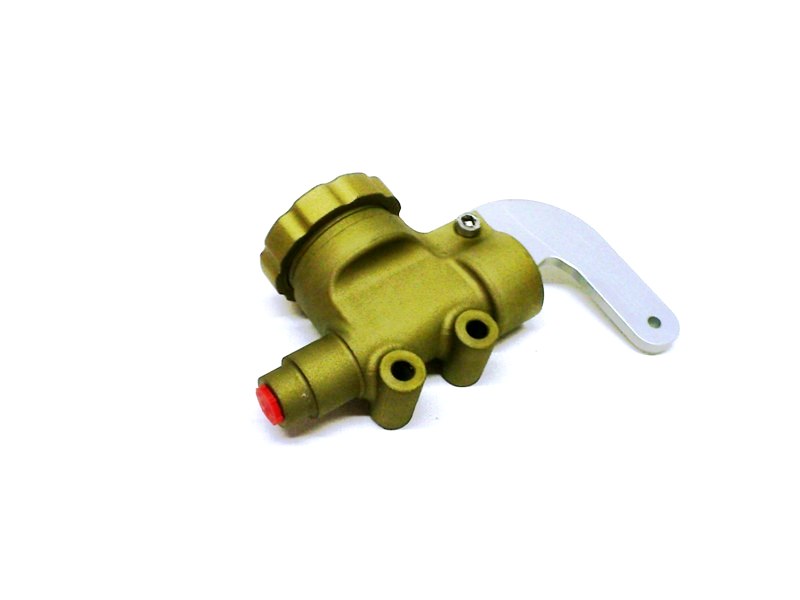

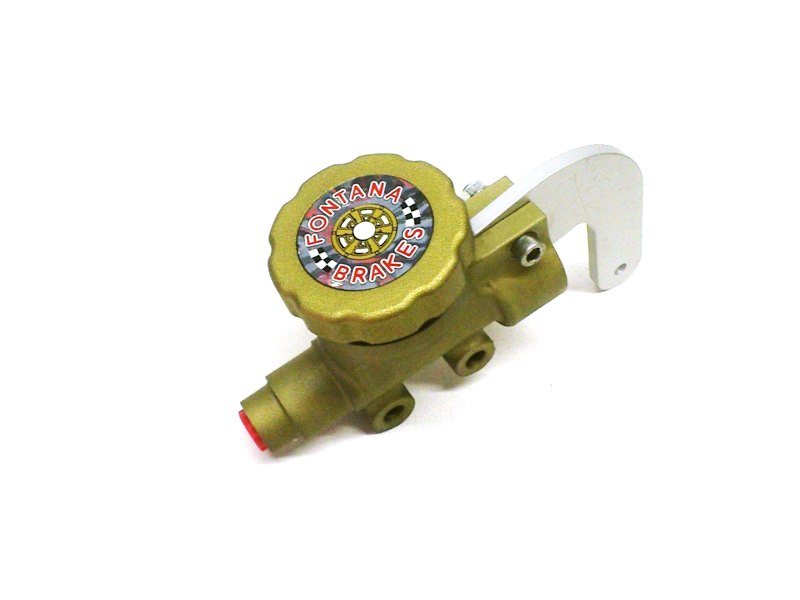

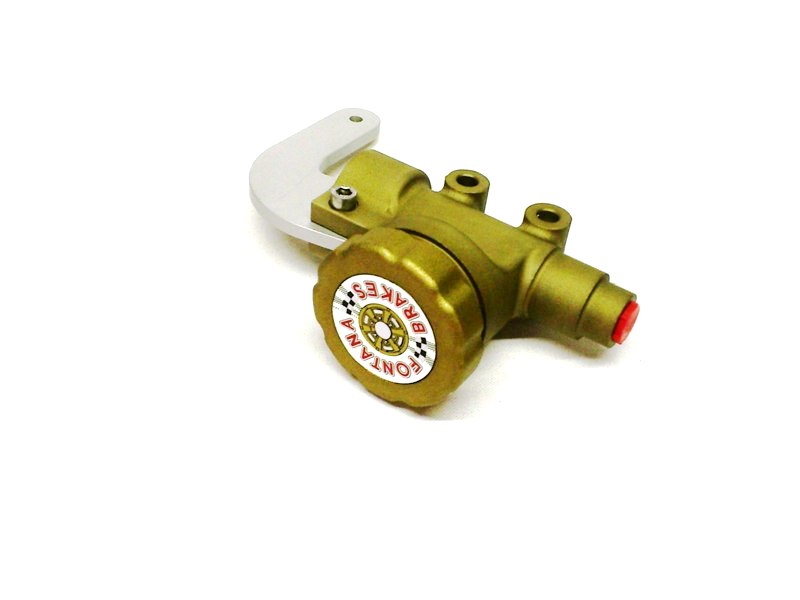

Rear Brake Master Cylinder

art.FB21 B

Euro 335,00

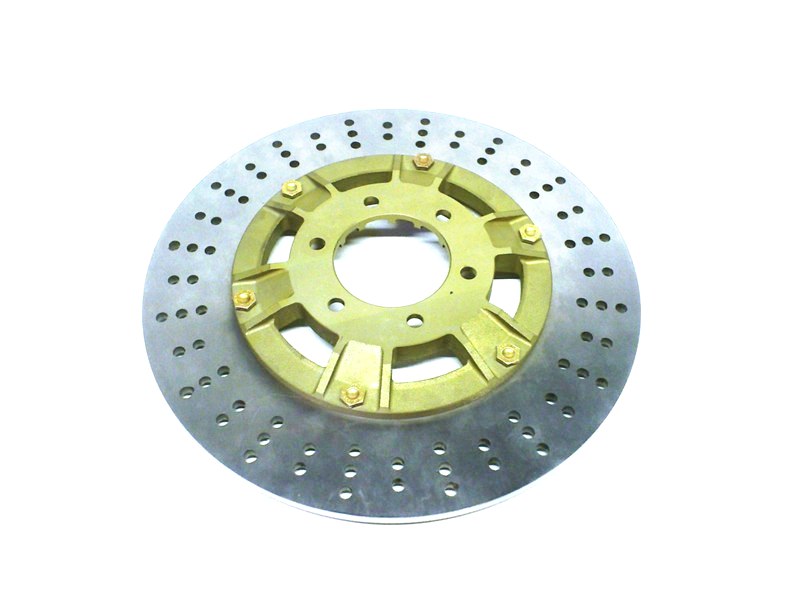

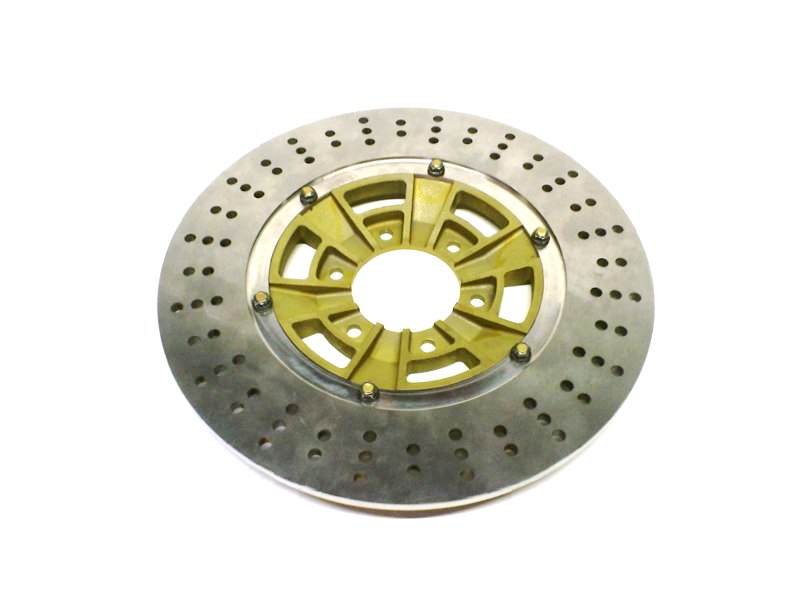

Disc Brake



Type	MAT AIAI 420
Diameter / Thickness	260 mm / 6 mm
Hardness	36/38 Rokwell
Assembly	n.6 holes D 6,35 mm distance 155 mm
Screws	Nas 1304/4
Weight	1.855 gr

art.FB31 B

Euro 320,00

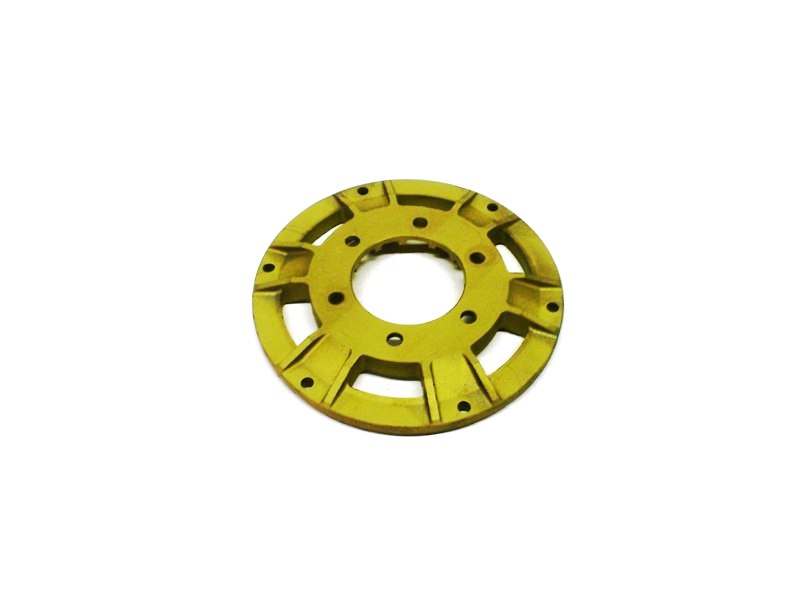

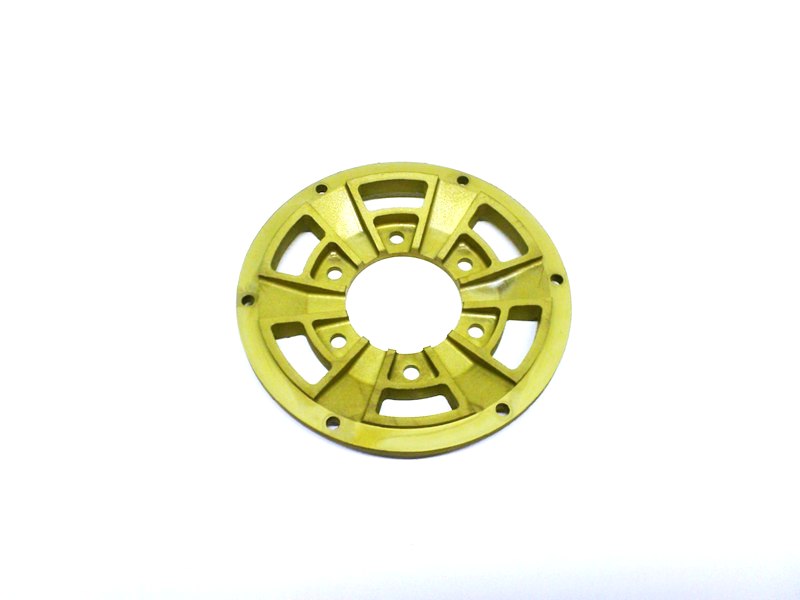

Alloy bell for disc brake



Assembly	n.6 holes D 8 mm distance 80 mm
Offset	18,5 mm (centre disc)
Weight	325 gr

art.FB41 B

Euro 150,00

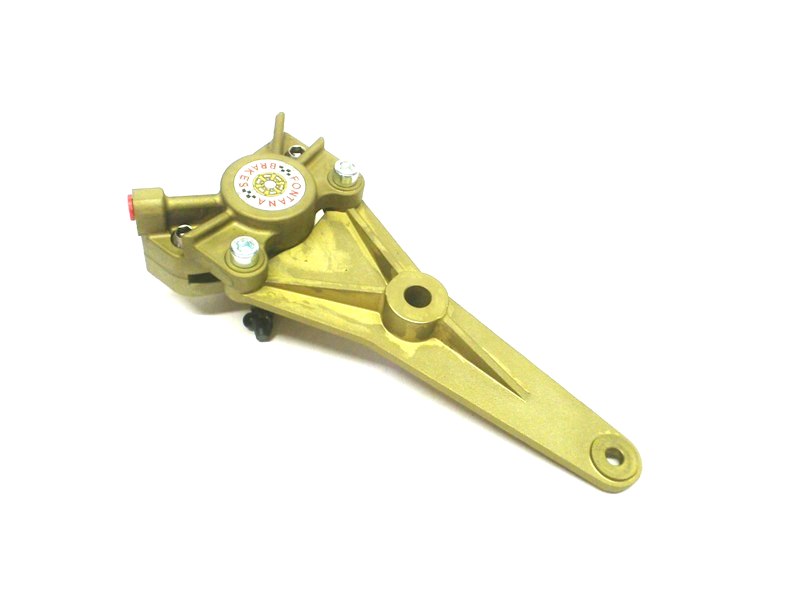

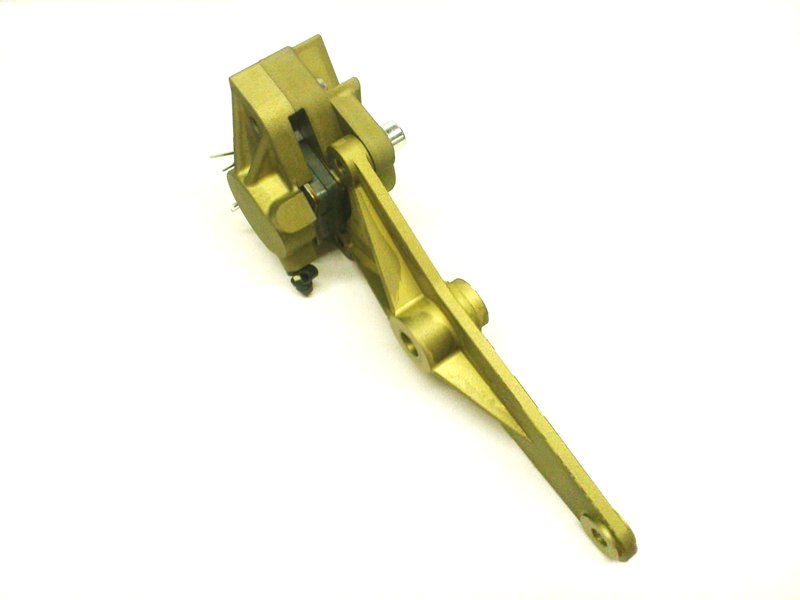

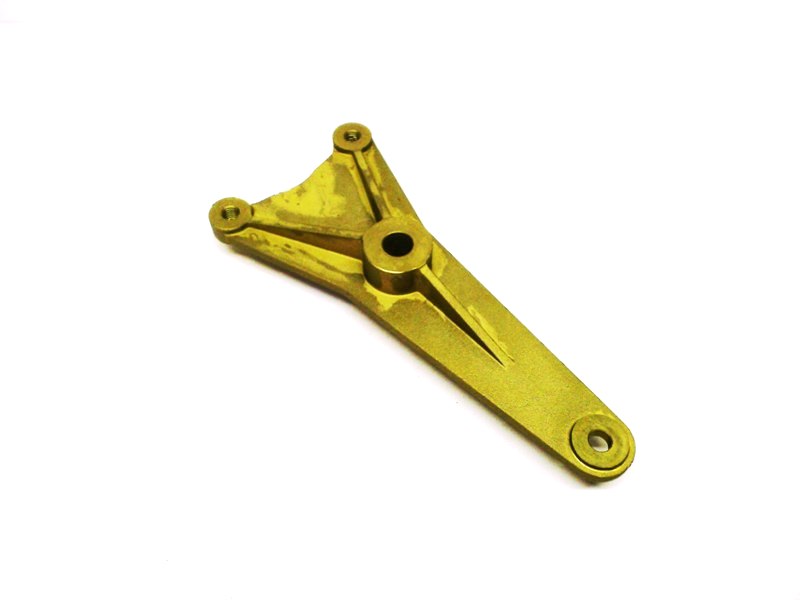

Bracket for rear caliper

art.FB51 B

Euro 115,00

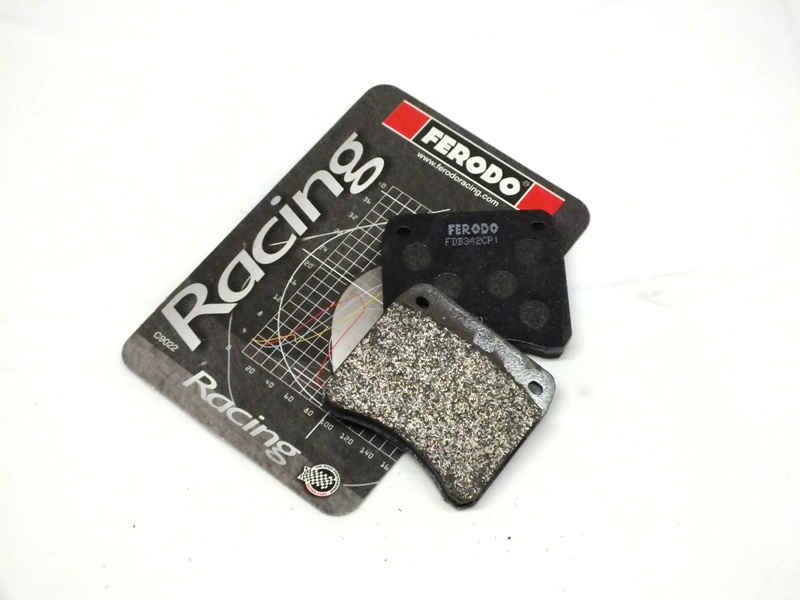

Ferodo Pads - pair

art.FB61 C

Euro 35,00

Sticker FONTANA BRAKES

for calipers and master cylinder

art.FB66 D

Euro 5,00 pair

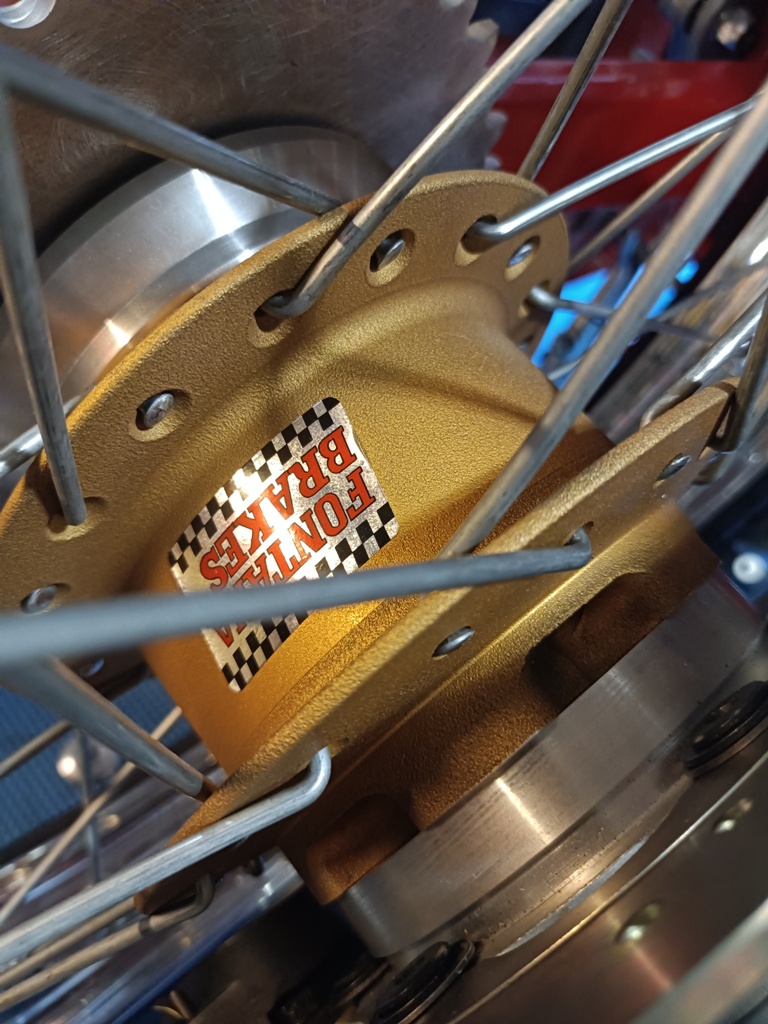

Sticker FONTANA BRAKES

for wheel hubs

art.FB67 D

Euro 5,00 pairs

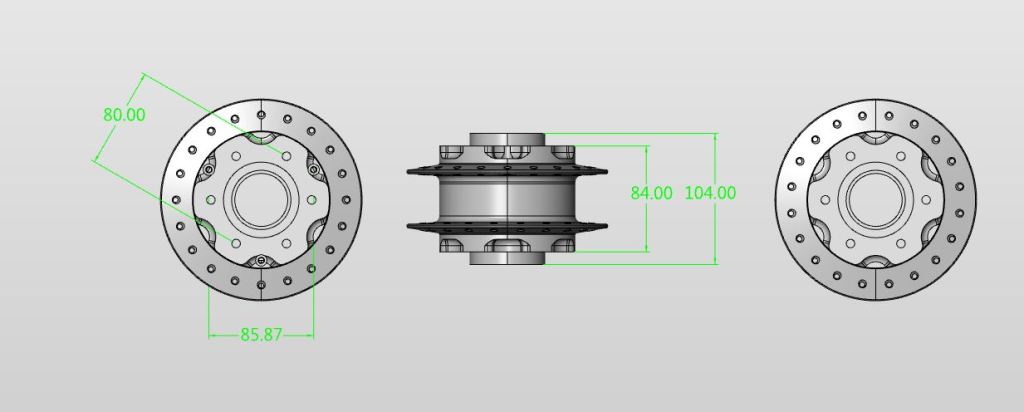

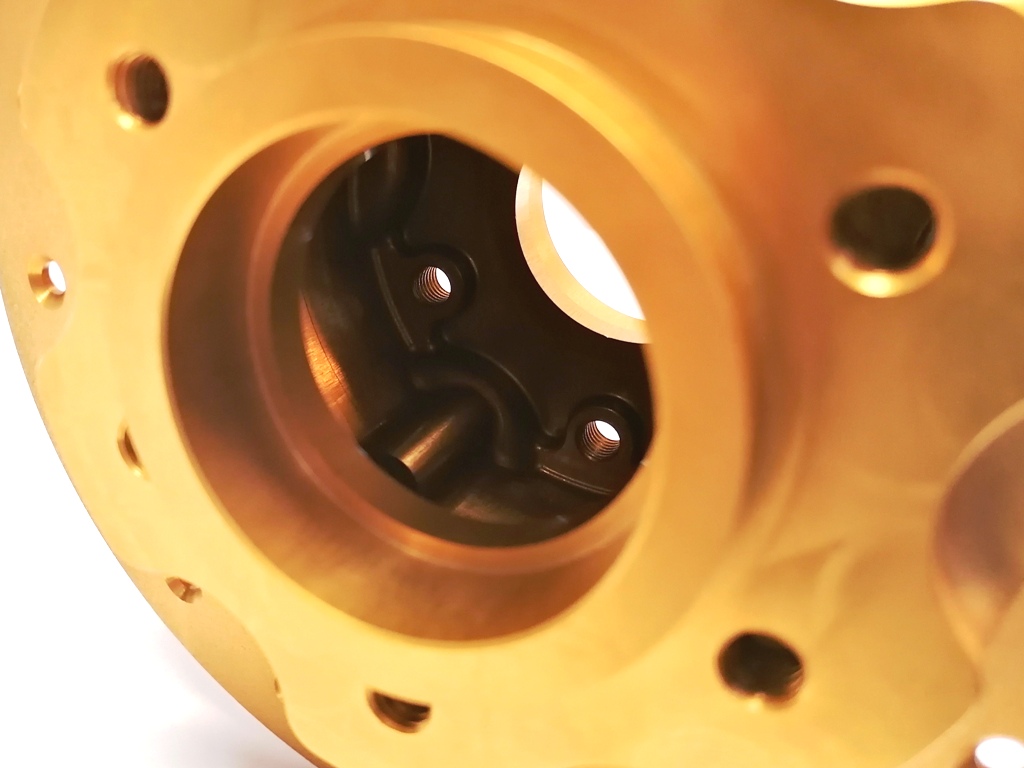

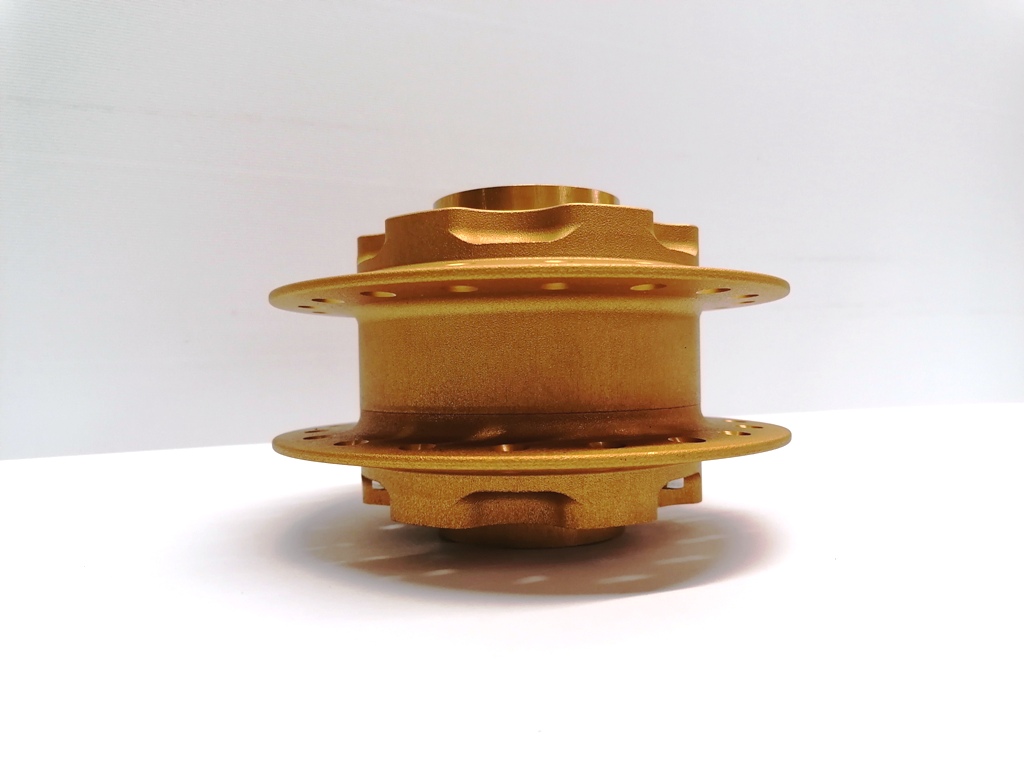

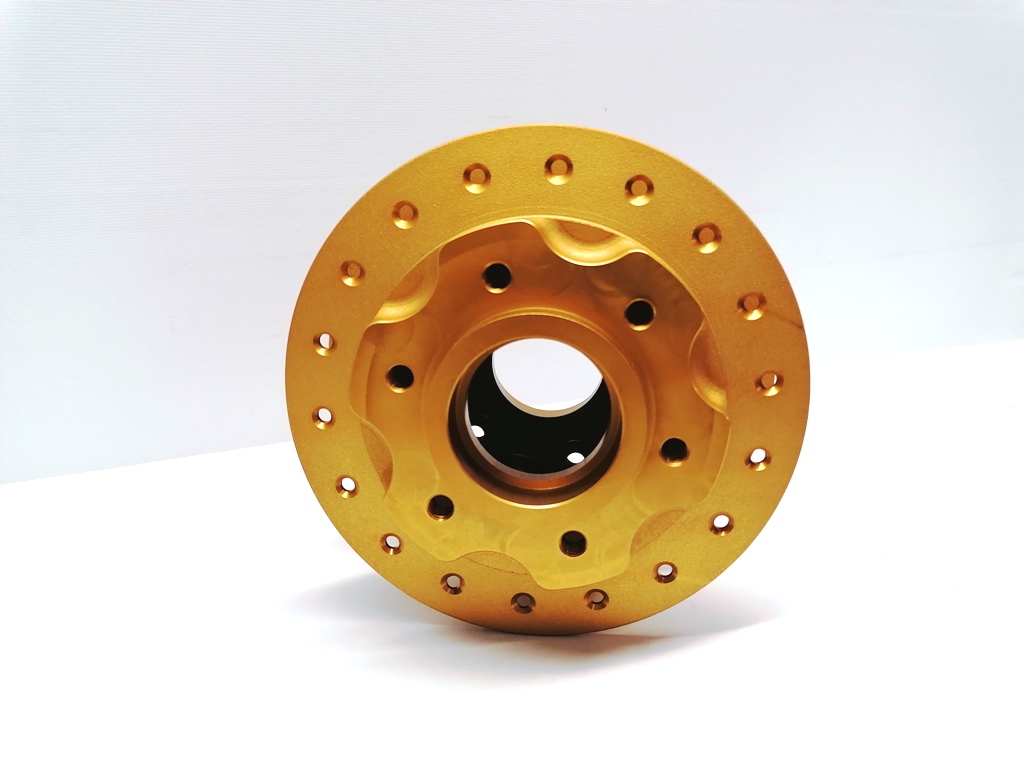

Fontana Brakes hub - narrow type

36 spokes drilling

max dia. 160 mm - spokes drilling dia. 135 mm

total width 104 mm - width at the brake disc level 84 mm

spokes drilling level width 45 mm

bearing seat 47x17 mm - weight 970 gr

art.FB71 C

Euro 395,00

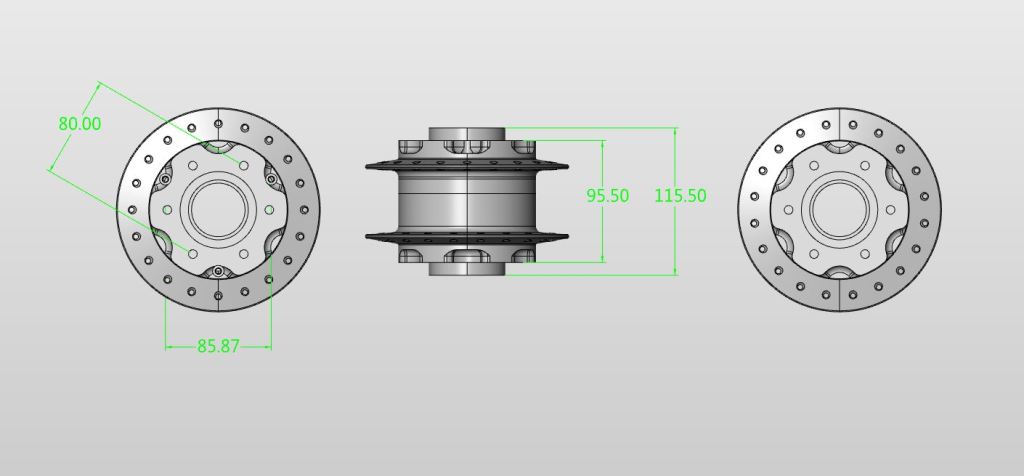

Fontana Brakes hub - wide type

36 spokes drilling

max dia. 160 mm - spokes drilling dia. 135 mm

total width 115,5 mm - width at the brake disc level 95,5 mm

spokes drilling level width 45 mm

bearing seat 47x17 mm - weight 970 gr

art.FB72 C

Euro 395,00

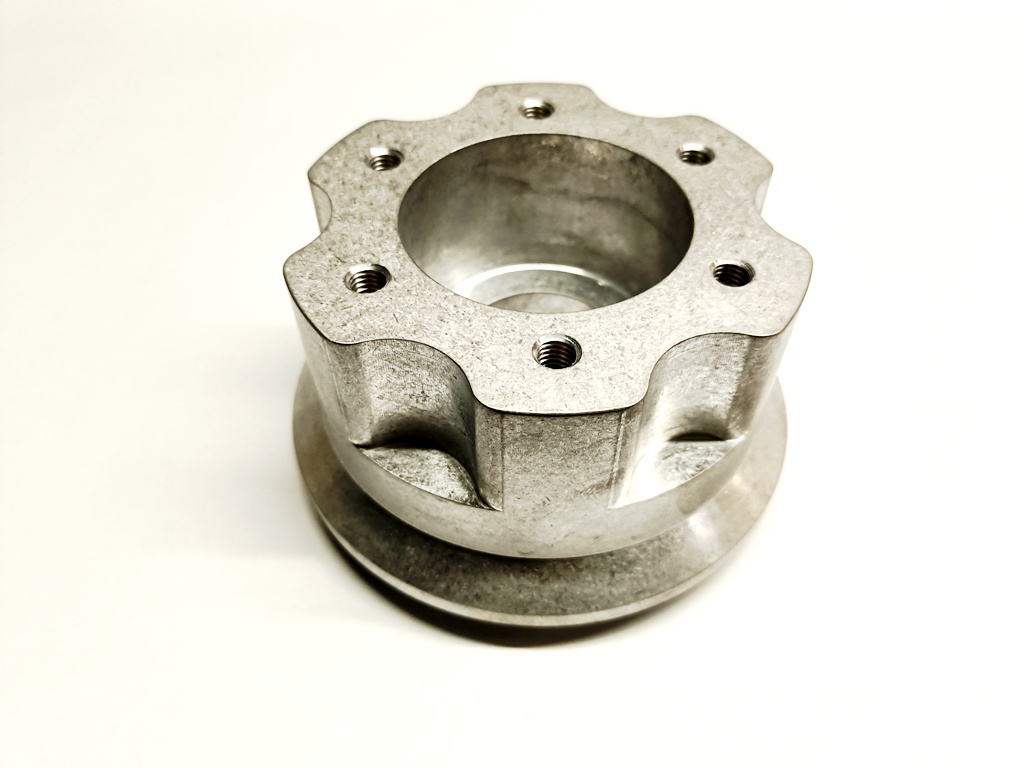

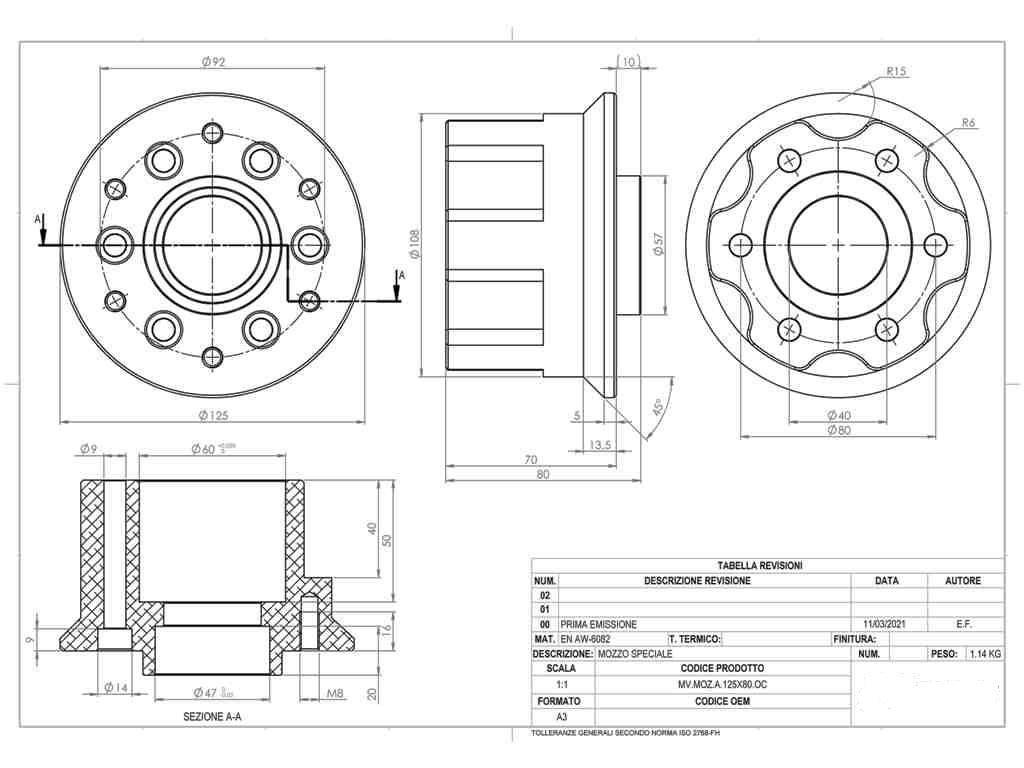

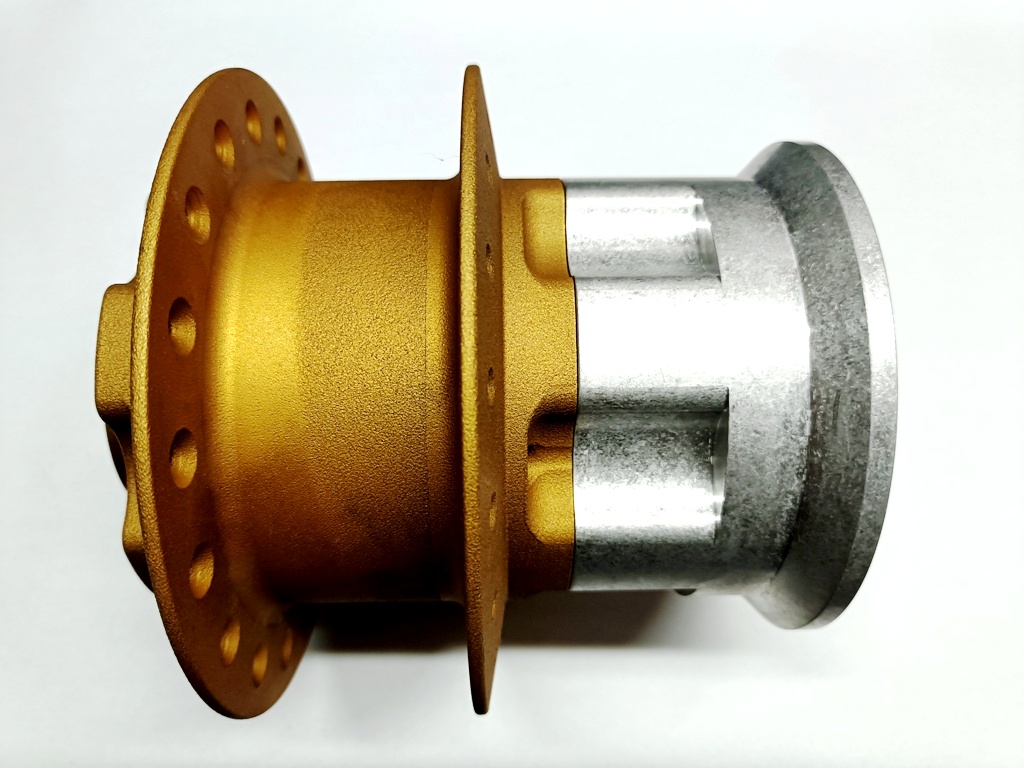

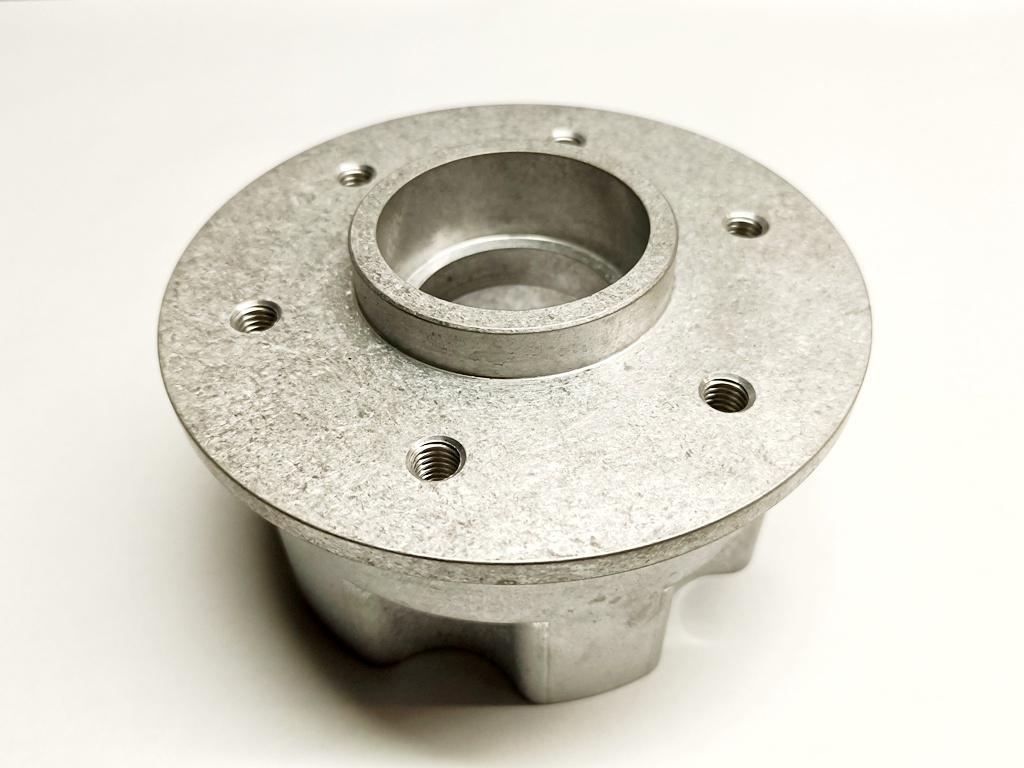

Rear sprocket hub for Fontana Brakes wheel

you can easly grind it to the correct size to align the final chain drive

art.FB75 A

Euro 115,00
